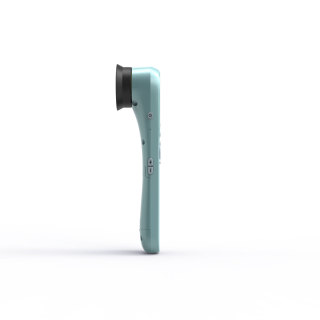

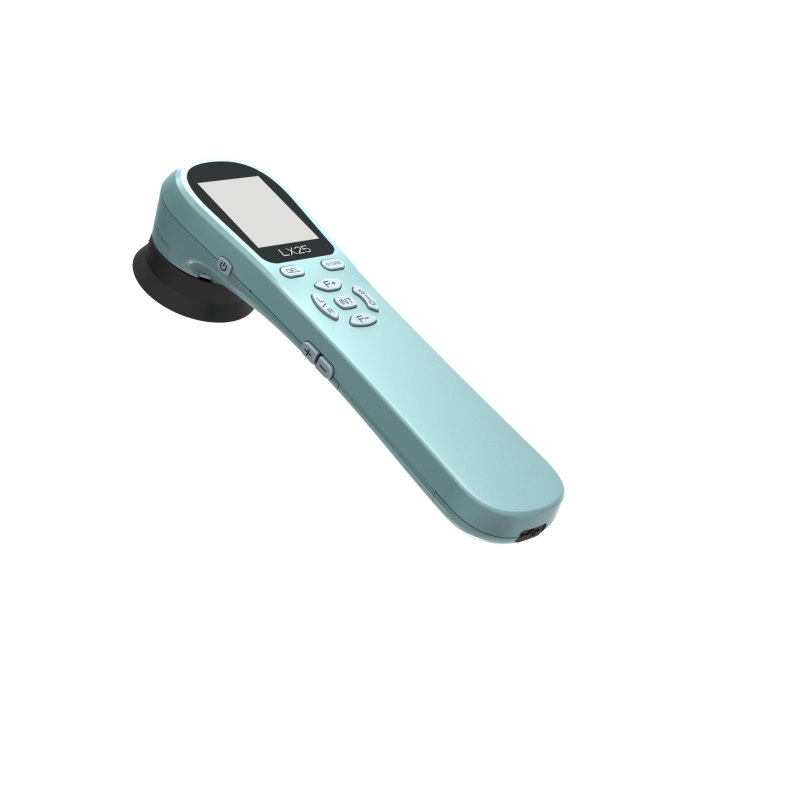

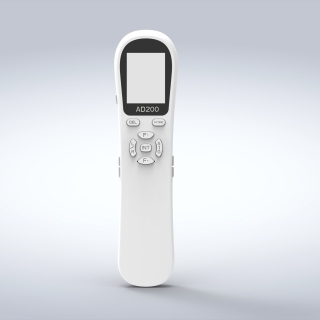

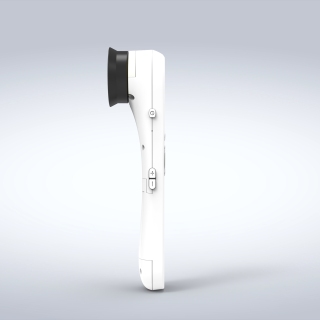

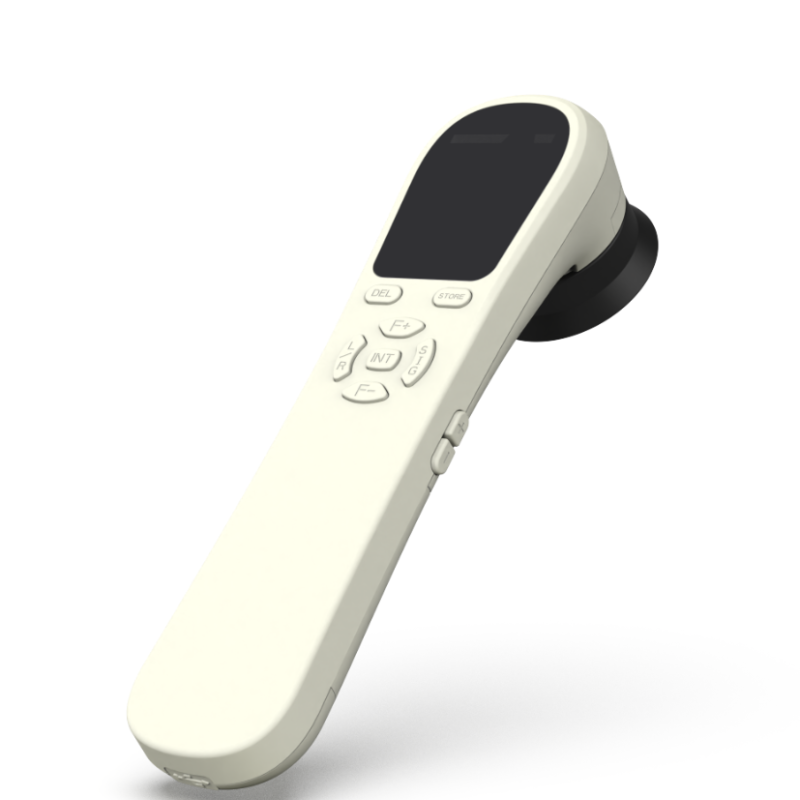

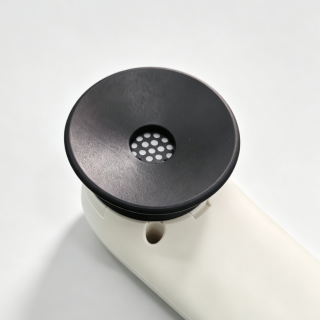

handheld audiometer
Product advantages
Portable design Ultra-portable,
convenient carrying
Battery powered Built-in removable battery, don't need to plug
Personalized report Setup
Self-analysis of test data, can customize
the report LOGO and name,You can also
generate reports in A4 or B5 format
High-speed stability connector
USB port,Fast and stable,
Connect to computer for data transfer
Technical parameter
ChannelsSingle channel output
Test FrequencyAir conduction 250~8000Hz,allowable error士2%
Hearing levelAir conduction-10~110dB
The warble tones modulation5Hz Sine Wave
Test SignalPure tone, Pulse, Warble tone
Display screen2.4"TFT LCD display
Distortion factorAir conduction less than 2.5%,
AccuracyContinuous attenuation/Step 5dB,error 1dB.
Giving soundKeypress
OutputAdopt THD39 single earphone
Protect functionAccord with acoustic safety requirements
StorageIt's able to save 200 test data
Air conduction PTA calculation
World Health Organization (WHO)standards,American National Standards Institute(ANSI)standards,optional
Customize the calculation accuracOriginal data,keep integer,Keep 2 decimal places
Diagnostic Template Customizable hearing diagnostic template(Pure tone hearing diagnostic template)
Personalized Reporting Settings
Multiple report header templates can be selected,report
parameters can be combined freely, and electronic signature issupported
Report named
The file name of the export report can be named by name,number, or custom
Test report storage
You can use FTP to store data in a specified directory based
on the PC capacity. You can select multiple storage formats(JPG/PDF/XML)
Data transfer
Use the USB2.0 port to connect to the PC, obtain the audiometer test data in batches, store the test data, and print the test report
Medical system interconnection
Support HL7 protocol docking, XML file docking, database docking,Easily connect with the medical system,Obtain originaldata and revised data
Validity period of Registered products5 years
