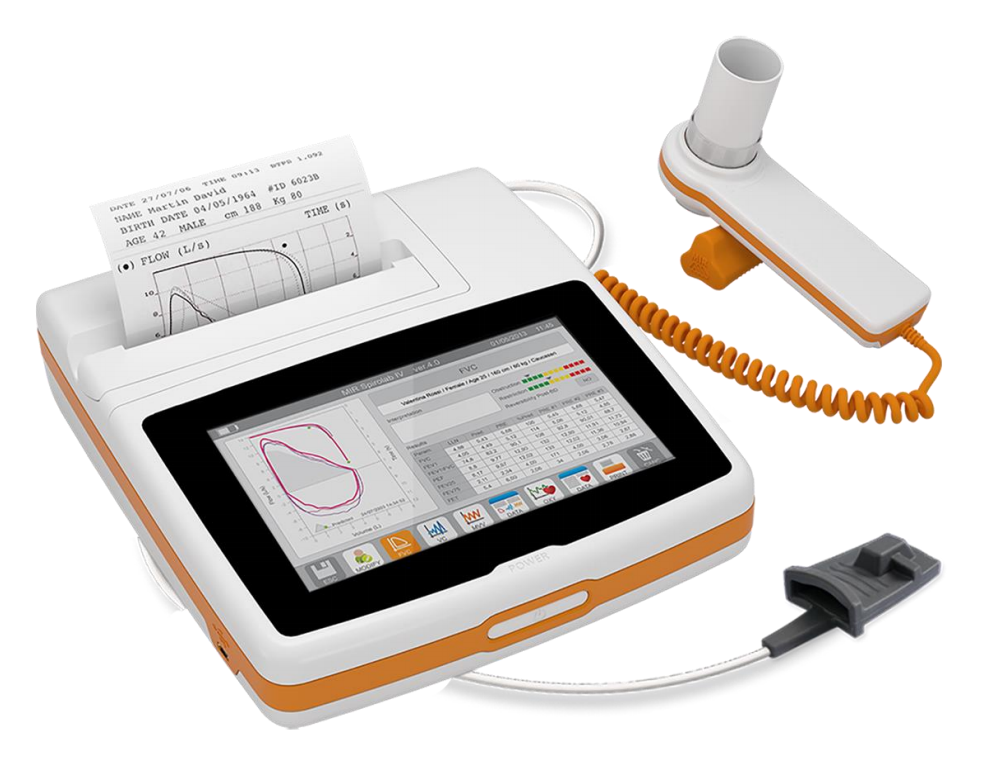

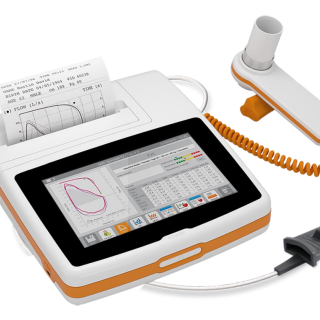

PC-based Spirometer

Spirolab

Technical specification

Width 220mm

Length 210 mm

Thickness 51 mm

Weight 1450 g (battery pack included)

Sensors

miniflowmeter (code 900595)

for reusable and disposable turbine dimension (Ø30 mm, 42 mm)

Reusable soft, adult, MIR sensor for oximetry tests (code 919024) only for spirolab code911081

Power supply Rechargeable battery and mains

power Ni-MH, 6 elements

Current capacity 4500 mAh

Consumption average  250 mA

Backup battery voltage  none

Batteries charger Output voltage=12 V, current=1A,

compliant with EN60601-1

Autonomy  ~10 hours

Connectivity   USB 2.0, Bluetooth® 2.1

Display   7 inch colour touch screen LCD Display with 800x480 resolution

Keyboard  absent, touchscreen

Mouthpieces Ø30 mm (1.18 inch)

Type of electrical Internally powered

protection Class II while charging battery

Safety level for Type BF Apparatus

shock hazard

Conditions of use Apparatus for continuous use

Storage conditions Temperature: MIN-40°C,

MAX +70C

Humidity: MIN 10% RH;

MAX 95%RH

Transport conditions Temperature: MIN-40°C,

MAX +70C

Humidity: MIN 10% RH;

MAX 95%RH

Operating conditions Temperature: MIN +10℃,

MAX+40°C

Humidity: MIN 10% RH,

MAX 95%RH

Applied norms   Electrical Safety EN 60601-1

Electro Magnetic Compatibility EN 60601-1-2

Degree of protection IPX1 appliance protected against

against water water leaks

penetration
