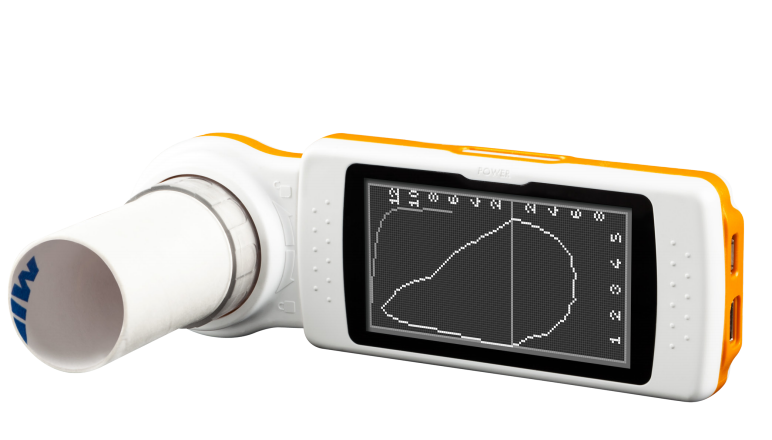

Touchscreen handheld Spirometer
The Spirodoc® Spiro is a handheld, portable diagnostic spirometer with
touchscreen display. The device can be configured to operate with advanced
parameters for full spirometry, reduced parameters set for simple screening
and a simple mode for patient home use.
KEY FEATURES
• Handheld spirometer with touchscreen
Navigate easily through the icon-based menus on
a clear, high resolution screen
• Three functional modes
Choose between full spirometry mode, basic
screening mode or patient mode for home
testing
• Patient’s home-care symptoms eDiary
With patient mode enabled, users can monitor
themselves and record their symptoms
• Large memory storage
Store up to 10,000 tests
• Bluetooth® and USB connectivity to PC
Download results stored on the device and
conduct real-time spirometry using WinspiroPRO®
PC software.

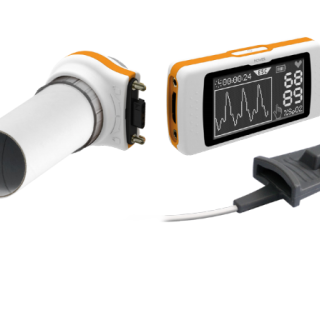

• Spiro + Oximetry version also available
TECHNICAL SPECIFICATIONS
Device category Diagnostic spirometer
Spirometry parameters
FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25%-75%,
FET, Estimated Lung Age, Extr. Vol., FIVC, FIV1, FIV1/FIVC%, PIF, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/ttot, VT/ti, MVV measured, MVV calculated
Flow measurement ± 16 L/s
Volume accuracy ± 3% or 50 mL
Flow accuracy ± 5% or 200 mL/s
Flow sensor Bi-directional digital turbine
Dynamic resistance at 12 L/s <0.5 cmH2O/L/s
Temperature sensor Semiconductor (0-45°C)
Data transmission USB 2.0 On-The-Go and Bluetooth® 2.1
Display 128x64 pixels LCD Backlit Touch screen Display
Power Lithium ion 3.7V, 1100mA rechargeable battery
Battery charger (optional): 100VAC - 240VAC, 50Hz-60Hz output 5VDC, 500mA, micro USB type B
Dimensions Central unit: 101 x 48 x 16 mm - Removable turbine: 46 x 47 x 24mm
Weight Central unit: 99g - Removable turbine: 17g
